figure 8

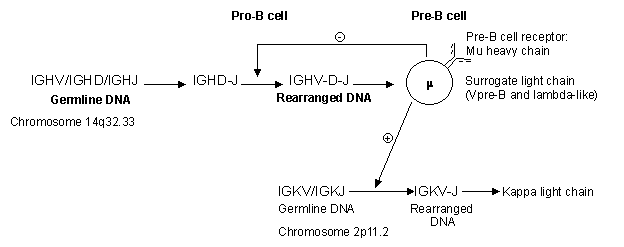

Figure 8 - Regulation of the immunoglobulin gene rearrangements in the pre-B cell

The expression of the pre-B cell receptor gives the signal which inhibits further IGHV-D-J rearrangements on chromosome 14, and the signal which starts the IGKV-J rearrangements on chromosome 2.
