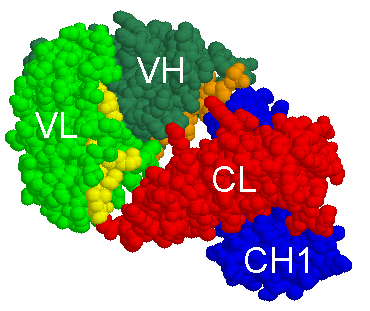

Representation of part of an immunoglobulin:
Fab Fragment

IgG1 proteolytic cleavage by the papain gives two Fab (Fragment antigen binding) fragments and a Fc fragment.
The Fab fragments retain the ability to bind antigen because each contains paired VL and VH domains.

VH corresponds to the V-D-J-REGION (in green (V), orange (DJ)) of the heavy chain.
VL corresponds to the V-J-REGION (in green (V) and yellow (J)) of the light chain.

The corresponding PDB (Protein Data Bank) format file is from Mike's immunoglobulin structure function site (

See also:

  • Representation of part of an immunoglobulin: Fc fragment
