Collier de Perles: Mouse (Mus musculus) IGH V-D-J REGION from 231 (PDB: 1igt_D)

IMGT/3Dstructure-DB card: 1igt

Mouse rearranged IGH V-D-J2 REGION [8.8.11]

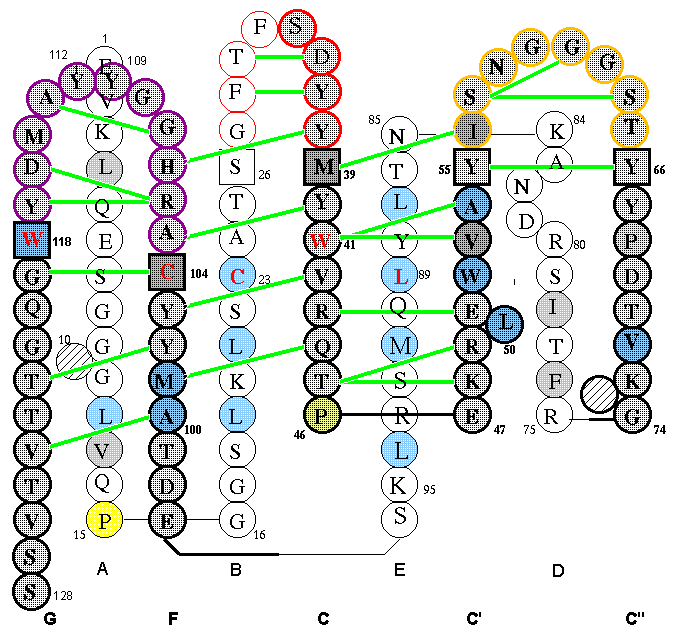

The Collier de Perles (in space) shows on the forefront the strands located at the interface with the the Ig-Light chain V-DOMAIN. Hydrogen bonds between these strands (G, F, C, C', C'') are represented by green lines. On the back are shown the strands located on the external face of the Ig-Heavy chain V-DOMAIN.

Legend:

Amino acids are shown in the one-letter abbreviation.
Hydrophobic amino acids (hydropathy index with positive value) and Tryptophan (W) found at a given position in more than 50 % of analysed Ig and TcR sequences are shown in blue.
All Proline (P) are shown in yellow.
The CDR-IMGT are limited by amino acids shown in squares, which belong to the neighbouring FR-IMGT. The CDR3-IMGT is described using the IMGT unique numbering for V-DOMAIN.
Hatched circles or squares correspond to missing positions according to the IMGT unique numbering for V-REGIONs. Missing positions of the CDRs are not shown in this representation.
Arrows indicate the direction of the beta strands and their different designations in 3D structure.
CDR-IMGT regions are colored according to the IMGT color menu.
