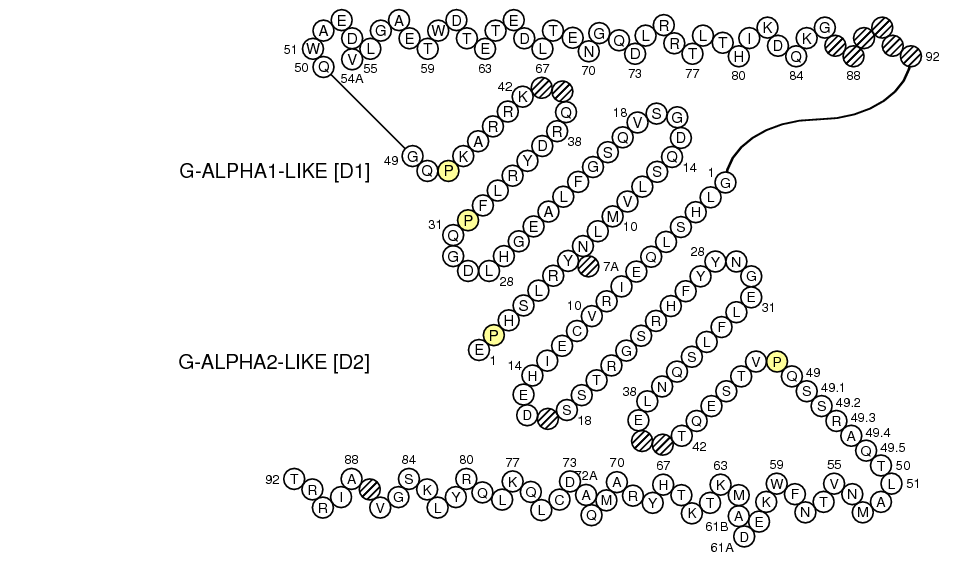

IMGT Collier de Perles for Homo sapiens MICB*01 [D1,D2] (G-LIKE-DOMAIN)

Here you are: IMGT Web resources > IMGT Repertoire (RPI) > 3. 2D and 3D structures

Frigoul, A. and Lefranc, M.-P. "MICA: standardized IMGT allele nomenclature, polymorphisms and diseases" Recent Research Developments in Human Genetics, 3, 95-145 (2005)

with permission from Research Signpost

IMGT poster: MICA alleles and MICA-NKG2D interactions: an example of IMGT standardization

This figures have been generated with the IMGT/Collier de Perles tool for G-DOMAIN and G-LIKE-DOMAIN developed by Quentin Kaas (12/12/2002).

Legend:

Amino acids are shown in the one-letter abbreviation.
Hydrophobic amino acids (hydropathy index with positive value) and Tryptophan (W) found at a given position in more than 50 % of analysed Ig and TcR sequences are shown in blue.
All Proline (P) are shown in yellow.
Arrows indicate the direction of the beta sheets and their different designations in 3D structure. This information has to be used carefully if not supported by experimental data.
Hachured circles or squares correspond to missing positions according to the IMGT unique numbering.
Missing positions in IMGT Colliers de Perles based on 3D structures may be due to incomplete experimental data.
