IMGT Collier de Perles for Homo sapiens PIGR domain 3 (V-LIKE-DOMAIN)

Here you are: IMGT Web resources > IMGT Repertoire (RPI) > 3. 2D and 3D structures

PIGR: polymeric immunoglobulin receptor (P01833)
CDR-IMGT lengths: [8.1.15]

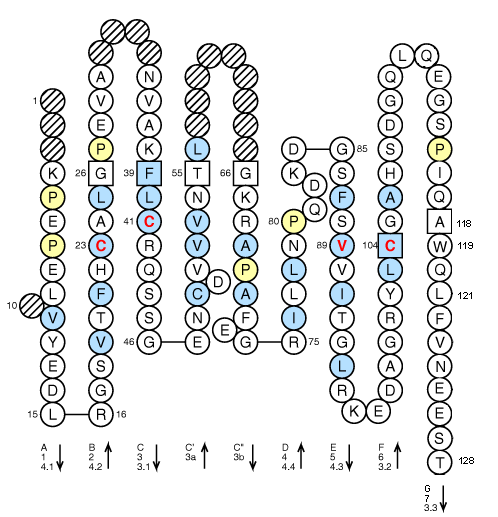

Collier PIGR3 V-LIKE-DOMAIN

This figure has been generated with the IMGT/Collier de Perles tool initially implemented by Gérard Mennessier (LPM, Montpellier, France, 25/05/1997) and further developed by Manuel Ruiz (08/09/1999) and Quentin Kaas (15/11/2001).

Legend:

Amino acids are shown in the one-letter abbreviation.
Hydrophobic amino acids (hydropathy index with positive value) and Tryptophan (W) found at a given position in more than 50 % of analysed Ig and TcR sequences are shown in blue.
All Proline (P) are shown in yellow.
Arrows indicate the direction of the beta sheets and their different designations in 3D structure. This information has to be used carefully if not supported by experimental data.
Hachured circles or squares correspond to missing positions according to the IMGT unique numbering.
Missing positions in IMGT Colliers de Perles based on 3D structures may be due to incomplete experimental data.
The CDR-IMGT are limited by amino acids shown in squares, which belong to the neighbouring FR-IMGT.
