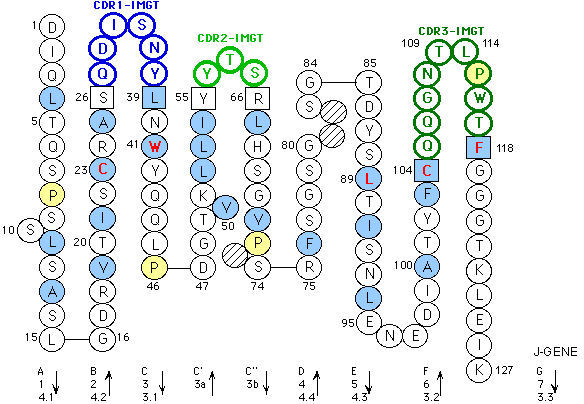

Collier de Perles: Mouse (Mus musculus) IGK V-J REGION from E5.2 Fv (PDB: 1dvf_C )

IMGT/3Dstructure-DB card: 1dvf

Side view (backbone model)
View from above the CDRs (backbone model)

Collier de Perles: Mouse IGH V-D-J REGION

Mouse rearranged IGK V-J1 REGION

[6.3.9]

The PBD file 1dvf contains the atomic coordinates of the complex between Idiotope D1.3-Antiidiotope E5.2. Both D1.3 and E5.2 are mouse (Mus musculus) antibodies (IgG1, kappa). Only the IGK V-DOMAIN of E5.2 (or "Fv", for "Fragment variable") (PDB: 1dvf_C) is displayed here.

Legend:

Amino acids are shown in the one-letter abbreviation.
Hydrophobic amino acids (hydropathy index with positive value) and Tryptophan (W) found at a given position in more than 50 % of analysed Ig and TcR sequences are shown in blue.
All Proline (P) are shown in yellow.
The CDR-IMGT are limited by amino acids shown in squares, which belong to the neighbouring FR-IMGT. The CDR3-IMGT is described using the IMGT unique numbering for V-DOMAIN.
Hatched circles or squares correspond to missing positions according to the IMGT unique numbering for V-REGIONs. Missing positions of the CDRs are not shown in this representation.
Arrows indicate the direction of the beta strands and their different designations in 3D structure.
