3D representation for Homo sapiens CD4 domain 1 with Hydrogen bonds (V-LIKE-DOMAIN)

Here you are: IMGT Web resources > IMGT Repertoire (RPI) > 3. 2D and 3D structures

CD4 domain 1 with Hydrogen bonds (IMGT/3Dstructure-DB card: 1wio_A)

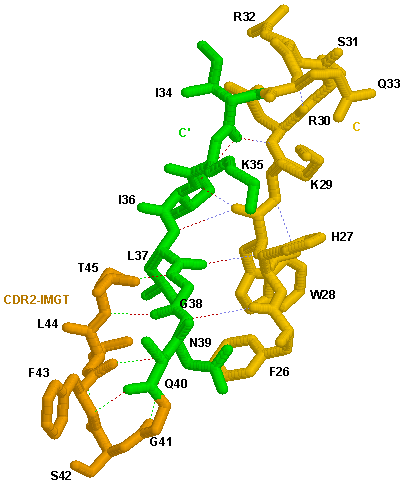

Side view of strands C and C' of the CD4 domain 1 (backbone model) 3D representation CD4.1 V-LIKE-DOMAIN

3D representation CD4.1 V-LIKE-DOMAIN

Legend:

CDR-IMGT regions are colored according to the IMGT color menu:
V-J-REGION: CDR1-IMGT (blue), CDR2-IMGT (green), CDR3-IMGT (greenblue)
V-D-J-REGION: CDR1-IMGT (red), CDR2-IMGT (orange), CDR3-IMGT (purple)
V-DOMAIN strands are colored according to the IMGT color menu for strand representation: A, B and C strands (orange), C' and C'' strands (green), D strand (yellow), E, F and G strands (blue).

IMGT note:

A V-DOMAIN corresponds to the V-J-REGION or V-D-J-REGION of the immunoglobulin and T cell receptor chains.
