3D representation: Human (Homo sapiens) C-DOMAINs

Here you are: IMGT Web resources > IMGT Repertoire (IG and TR) > 3. 2D and 3D structures

TR γδ G115 (PDB: 1hxm)

IMGT/3Dstructure-DB card: 1hxm

Side view (backbone model)

C-DOMAIN C-GAMMA TRGC1
C-DOMAIN C-DELTA TRDC

A C-DOMAIN corresponds to the complete C-REGION, to most of the C-REGION, or to part of the C-REGION, depending on the immunoglobulin or T cell receptor chain type.

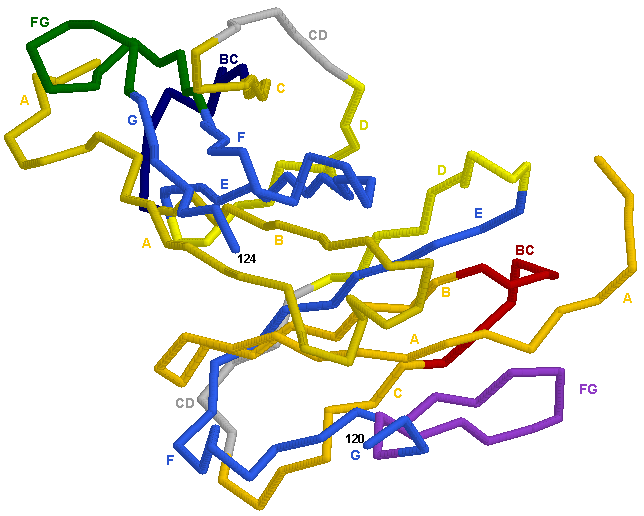

This figure shows the two associated C-DOMAINs of a gamma-delta T cell receptor gamma chain (PDB: 1hxm_B), delta chain (PDB: 1hxm_A). The two C-DOMAINs, C-GAMMA and C-DELTA are part of the TRG C-REGION and TRD C-REGION, respectively.
Only the C-DOMAINs are displayed. The carbohydrates are not shown.
In the PDB file, the sequences include 10 and 17 amino acids of the CONNECTING-REGION of the gamma and delta chains, respectively, however, the 3D structures only include amino acids up to positions 124 and 120, for the gamma and delta C-DOMAINs, respectively, according to the IMGT unique numbering for C-DOMAIN.

Legend:

C-DOMAIN loops are colored according to the IMGT color menu:
- TRG BC loop (blue), FG loop (dark green)
- TRD BC loop (red), FG loop (purple)
C-DOMAIN strands are colored according to the IMGT color menu for strand representation: A, B and C strands (orange), transversal CD strand (grey), D strand (yellow), E, F, G strands (blue).

This image has been generated with the program RASMOL version 2.6 [1] from the PDB file 1hxm [2], containing the atomic coordinates of the crystal structure of a human Vgamma9/Vdelta2 T cell receptor.
