IMGT Repertoire (IG and TR)


Locus representation: Bornean orangutan (Pongo pygmaeus) IGH locus on chromosome 14 Holistic IMGT reference

Citing this page: IMGT/LIGM-DB: IMGT000144 (1561328 bp), IMGT000166 (1672821 bp), bornean orangutan (Pongo pygmaeus) IGH locus on the chromosome 14.

Bornean orangutan (Pongo pygmaeus) IGH locus on chromosome 14 Holistic IMGT reference

The orientation of the Bornean orangutan (Pongo pygmaeus) IGH locus on chromosome 14 Holistic IMGT reference is reverse (REV).

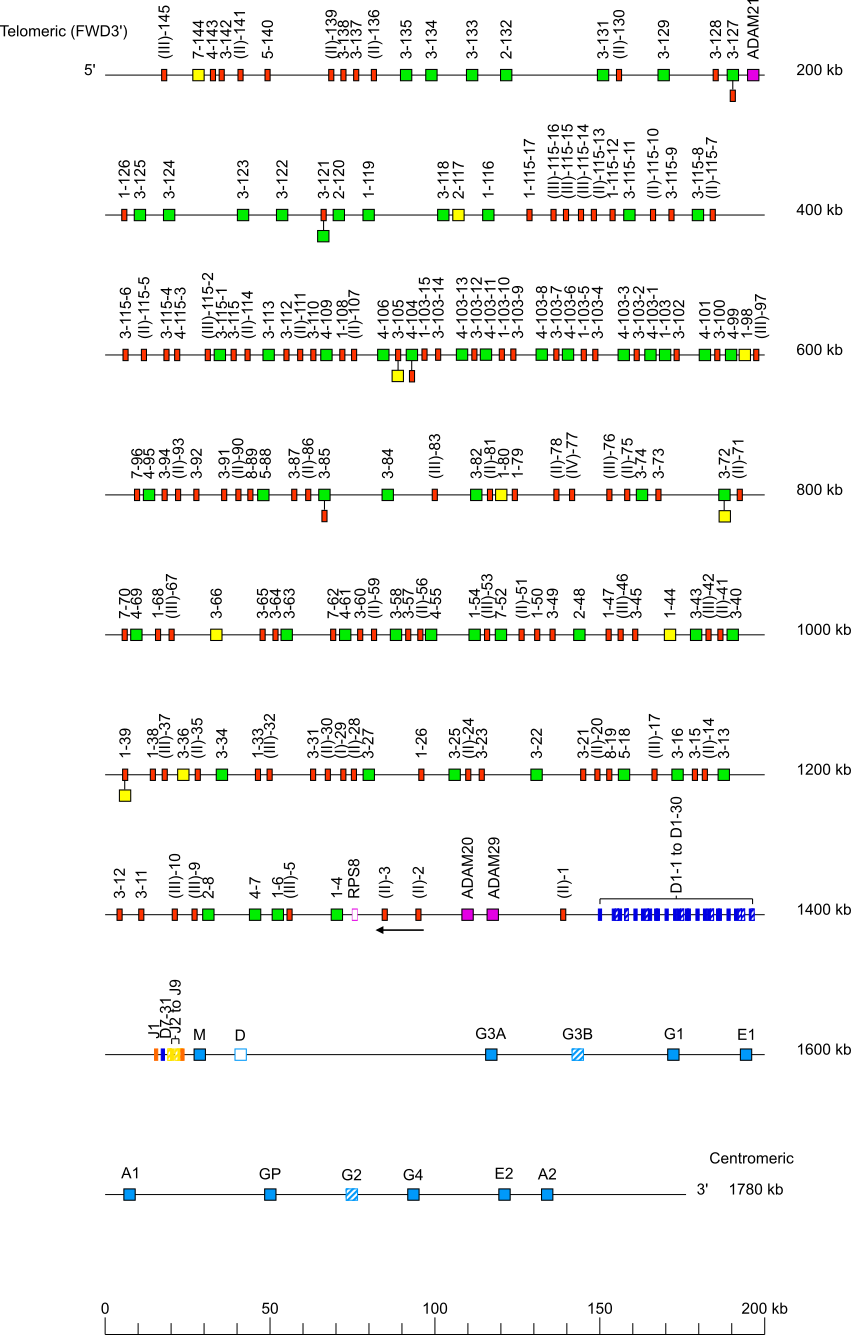

Locus representation Bornean orangutan (<em>Pongo pygmaeus</em>) IGH locus on chromosome 14 Holistic IMGT reference

Legend:
Colors are according to IMGT color menu for genes.
The boxes representing the genes are not to scale. Exons are not shown.
A double slash // indicates a gap in genome assembly. Distances in bp (base pair) or in kb (kilobase) associated with a double slash are taken into account in the length of the lines and included in the numbers displayed at the right end of the lines.

IGH gene names are according to the IMGT nomenclature [1].

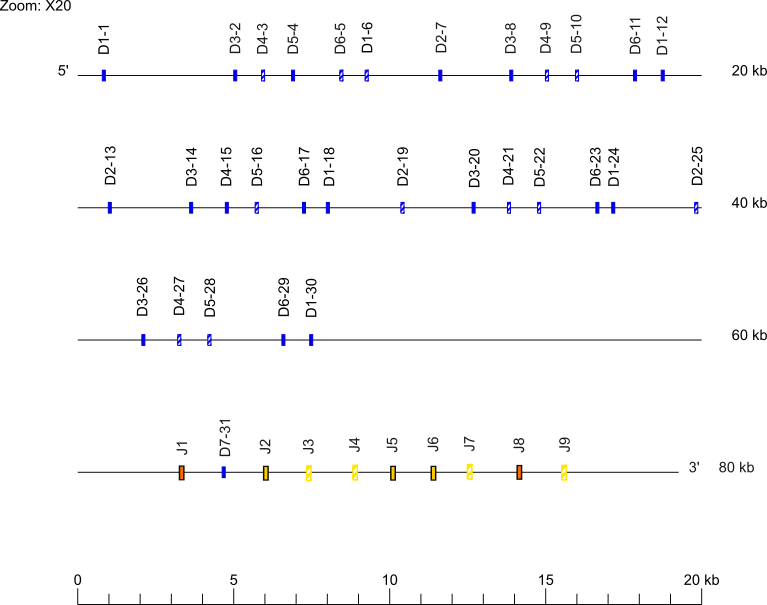

Zoom for D and J genes

zoom

IMGT references:
  1. [1] Lefranc, M.-P. Front Immunol. 2014 Feb 05;5:22. doi: 10.3389/fimmu.2014.00022. Open access.. PMID:24600447
  2. [2] Lefranc, M.-P. and Lefranc, G., Academic Press, London, 458 pages (2001), The immunoglobulin FactsBook. 012441351X..
  3. [3] Lefranc, M.-P., Exp Clin Immunogenet., 18, 161-174 (2001)..
  4. [4] Ermert, K. et al., GENOMICS., 25, 623-629 (1995)..
  5. [5] Pargent, W. et al., Eur. J. Immunol., 21, 1821-1827 (1991)..
  6. [6] Lautner-Rieske, A. et al., Eur. J. Immunol., 22, 1023-1029 (1992)..
  7. [7] Hüber, C. et al., Eur. J. Immunol., 23, 2860-2967 (1993)..
  8. [8] Weichhold, G.M. et al., GENOMICS., 16, 503-511 (1993)..
  9. [9] Brensing-Küppers, J. et al., Gene., 191, 173-181 (1997)..
Created:
16/08/2023
Last updated:
16/09/2024
Authors:
Shamsa Batool
